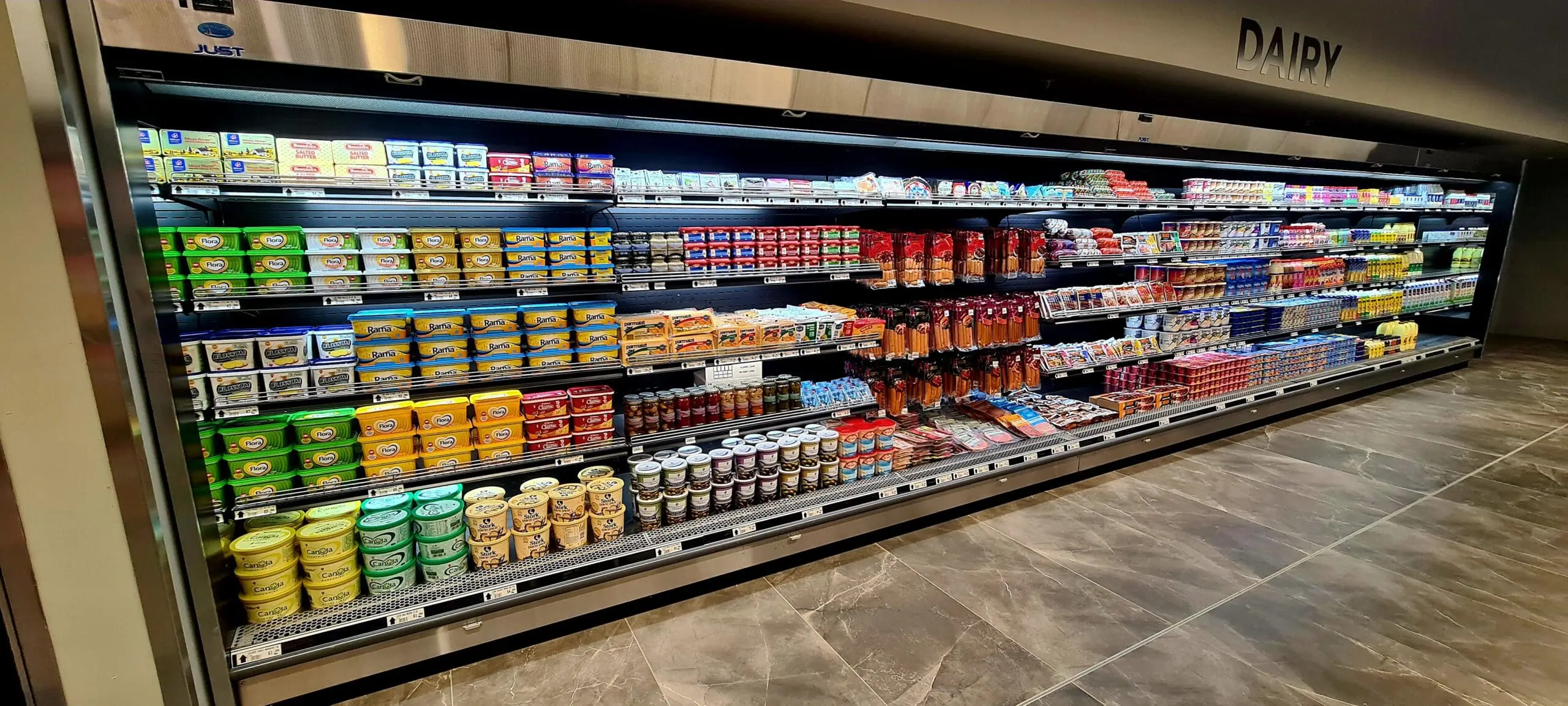

Transform your supermarket aisles into high-converting dairy zones. This vertical multideck dairy display cabinet offers massive holding capacity with adjustable, heavy-duty shelving to hold heavy rows of milk, cheeses, and cold beverages. Featuring precision uniform airflow and energy-efficient night curtains, it preserves perishable dairy goods strictly within regulated food-safety zones while capturing customer attention.
| M2 | Units | 6ft | 8ft | 12ft | HEAD PIECE |
|---|---|---|---|---|---|
| Length | mm | 1875 | 2500 | 3750 | T.R.2025 |
| Height | mm | 2040 | 2040 | 2040 | 2040 |
| Depth | mm | 950 / 1130 | 950 / 1130 | 950 / 1130 | 950 / 1130 |
| Thickness of end | mm | 35 max 50 | 35 max 50 | 35 max 50 | 35 max 50 |
| Gross Volume | m³ | 1.57 / 1.67 | 2.09 / 2.25 | 3.15 / 3.38 | 1.57 / 1.67 |
| Total Display area | m² | 3.24 / 3.58 | 4.33 / 4.78 | 6.49 / 7.16 | 3.24 / 3.58 |
| Evaporator fans | nr.x watt | 2 x 10 | 4 x 10 | 6 x 10 | 2 x 10 |
| Lighting | nr.x watt | 2 x 36 | 4 x 36 | 6 x 36 | 2 x 36 |
| Nr. Defrost in 24h | nr.x 24h | 3/24h ~ 70 min def. +10˚C | 3/24h ~ 70 min def. +10˚C | 3/24h ~ 70 min def. +10˚C | 3/24h ~ 70 min def. +10˚C |
| Refrigeration Capacity (300 front at -7˚C) | watt | 2213 / 2353 | 2985 / 3183 | 4415 / 4699 | 2213 / 2353 |
| Refrigeration Capacity (440 front at -7˚C) | watt | 1992 / 2118 | 2687 / 2865 | 3974 / 4230 | 1992 / 2118 |
| Refrigeration Capacity (540 front at -7˚C) | watt | 1793 / 1907 | 2419 / 2579 | 3577 / 3807 | 1793 / 1907 |
| Rating Power | watt | 1150 | 1380 | 1840 | 460 |
| Daily Electrical Consumption | KWH/24 | 2.6 | 3.9 | 5.3 | 2.6 |
Q: Can the shelves be adjusted to fit tall milk bottles or large cheese crates?
A: Absolutely. The cabinet features multiple tiers of heavy-duty, plastic-coated steel shelves that can be easily adjusted vertically or tilted to customize your product presentation and accommodate bulkier dairy packaging.
Q: Does the open front cause cold air to spill out into the shop aisle?
A: The cabinet uses precision forced-air curtain technology. It blows a continuous, uniform sheet of high-velocity cold air from the top to the bottom of the opening. This creates an invisible barrier that seals the cold air inside and keeps ambient room air out.
Q: Is the digital controller protected against South African power surges?
A: Yes. The advanced digital thermostat comes integrated with automatic high/low voltage protection to safeguard the electronic components and compressor from damaging power fluctuations and electrical surges.
This massive vertical multi-deck wall cabinet is designed to form the backbone of high-volume grocery or convenience dairy departments. Its ultra-high back design allows you to stack stock higher, using vertical retail floor space to maximize your store’s earning potential per square meter. Engineered with robust injected polyurethane wall insulation and powered by a highly reliable refrigeration system, it easily manages heavy pull-downs during busy restocking periods.
Breakthrough technology replaces a conventional thermostat with an advanced electronic energy management system to cool quicker and maintain a more consistent temperature, while saving precious electricity.
By combining EMD control with ECM fans, electronic expansion valves and high-performance coils, we are able to further reduce energy consumption while improving cooling performance.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
