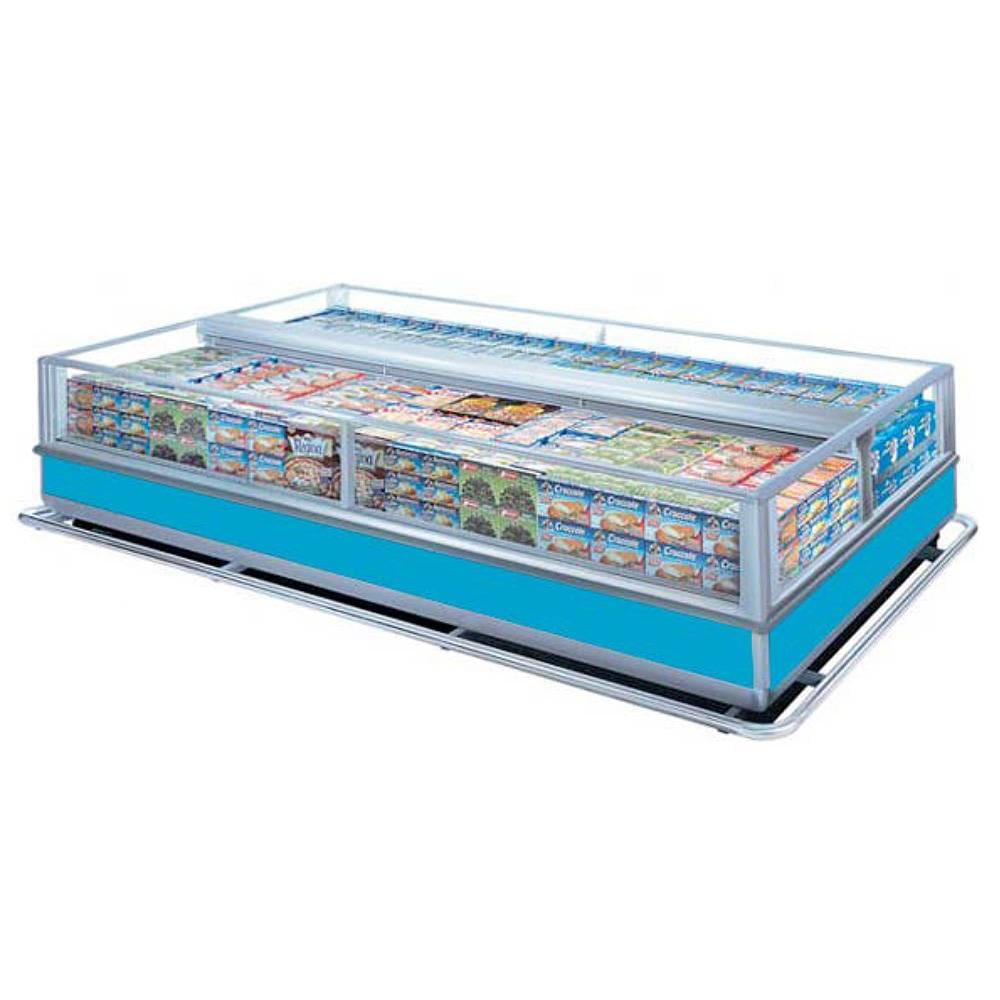

Dominate your supermarket floor plan and maximize high-volume bulk merchandising. The commercial jumbo island freezer is a heavy-duty, panoramic display solution designed to place maximum product volume directly in your shoppers’ path. Engineered with massive internal storage capacity and crystal-clear sliding glass lids, this island display is the ultimate system for driving rapid impulse sales of frozen meats, vegetables, ice cream, and bulk chilled products.
The cabinet structure uses high-density injected polyurethane foam insulation to provide rigid strength and superior thermal retention. To endure constant impacts from shopping trolleys and floor polishers, the perimeter is wrapped in a rugged, heavy-gauge bumper rail shield. Inside, adjustable wire fencing and divider baskets allow you to curate neat, stacked product lines that remain uniformly frozen from corner to corner.
The cabinet structure uses high-density injected polyurethane foam insulation to provide rigid structural strength and superior thermal retention. To endure the heavy impacts of shopping trolleys and floor polishers, the perimeter is wrapped in a rugged, heavy-gauge bumper rail shield. Inside, adjustable wire fencing and divider baskets let you curate tidy, stacked product lines that remain uniformly frozen from corner to corner.
| Units | 8ft | 12ft | |
|---|---|---|---|
| Length | mm | 2500 | 3750 |
| Width | mm | 1970 | 1970 |
| Height | mm | Front Glass: 400 / Total Height: 890 | Front Glass: 400 / Total Height: 890 |
| Thickness of end | mm | 60 | 60 |
| Gross Volume | m³ | 1460 | 2190 |
| Total Display area | m² | 5.39 | 8.08 |
| Evaporator fans | nr.x watt | 4 x 10 | 6 x 10 |
| Antimist heater | watt | 454(L) 250(M) | 518(L) 285(M) |
| Defrost Heater | nr.x watt | 2×1000(L) 2×420(M) | 2×1500(L) 2×625(M) |
| Nr. Defrost in 24h | nr.x 24h | 3/24h ~ 45 min def. +12˚C | 3/24h ~ 45 min def. +12˚C |
| LOW TEMP | |||
| Orifice | nr. | TES2 or.03 | TES2 or.04 |
| Refrigeration Capacity (at -36˚C) | watt | 1670 | 2500 |
| Rating Power | watt | 2300 | 2760 |
| Daily electrical consumption | KWH/24 | 17.8 | 22.8 |
| MEDIUM TEMP | |||
| Orifice | nr. | TES2 or.01 | TES2 or.02 |
| Refrigeration Capacity (at -10˚C) | watt | 1670 | 2500 |
| Rating Power | watt | 2300 | 2760 |
| Daily electrical consumption | KWH/24 | 10.2 | 13.1 |
Q: Can this island cabinet run as a fridge for fresh deli items and then switch to a deep freezer for ice cream?
A: Yes, absolutely. The Jumbo Island is built with a dual-temperature electronic controller. With a simple adjustment, you can toggle the unit between a medium-temperature chiller (0°C to +4°C) and a sub-zero freezer (-18°C to -22°C), giving your store total seasonal merchandising flexibility.
Q: Does the glass lid create condensation and frost up over time?
A: No. The unit utilizes specialized low-emissivity (low-E) structural glass panels alongside an integrated frame heating circuit. This prevents moisture in the ambient room air from condensing on the glass surface, ensuring your bulk inventory stays perfectly visible to customers at all times.
Q: What is the benefit of a “Jumbo” island layout versus a standard chest freezer?
A: Standard chest freezers are restricted by depth and narrow widths. The Jumbo Island is significantly wider and deeper, providing an expansive, panoramic “basket” area. This design allows you to stack multi-layered bulk rows of inventory, meaning your staff spends less time restocking shelves during peak shopping hours.

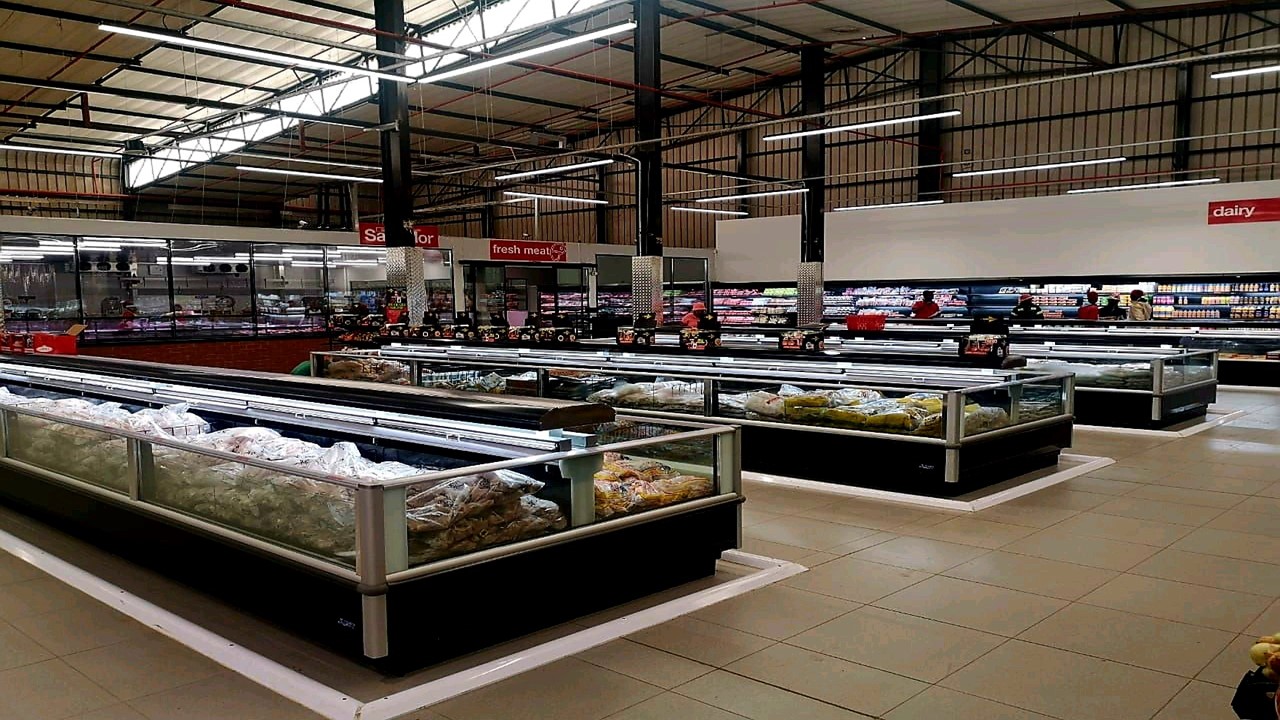

Built specifically to anchor the central aisles of busy supermarkets, hypermarkets, and wholesale cash-and-carries, the Jumbo Island series offers unmatched merchandising versatility. This unit features dual-temperature capability, allowing you to toggle the cabinet effortlessly between sub-zero deep freezing and medium-temperature chilling depending on your seasonal stock requirements.
Breakthrough technology replaces a conventional thermostat with an advanced electronic energy management system to cool quicker and maintain a more consistent temperature, while saving precious electricity.
By combining EMD control with ECM fans, electronic expansion valves and high-performance coils, we are able to further reduce energy consumption while improving cooling performance.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
