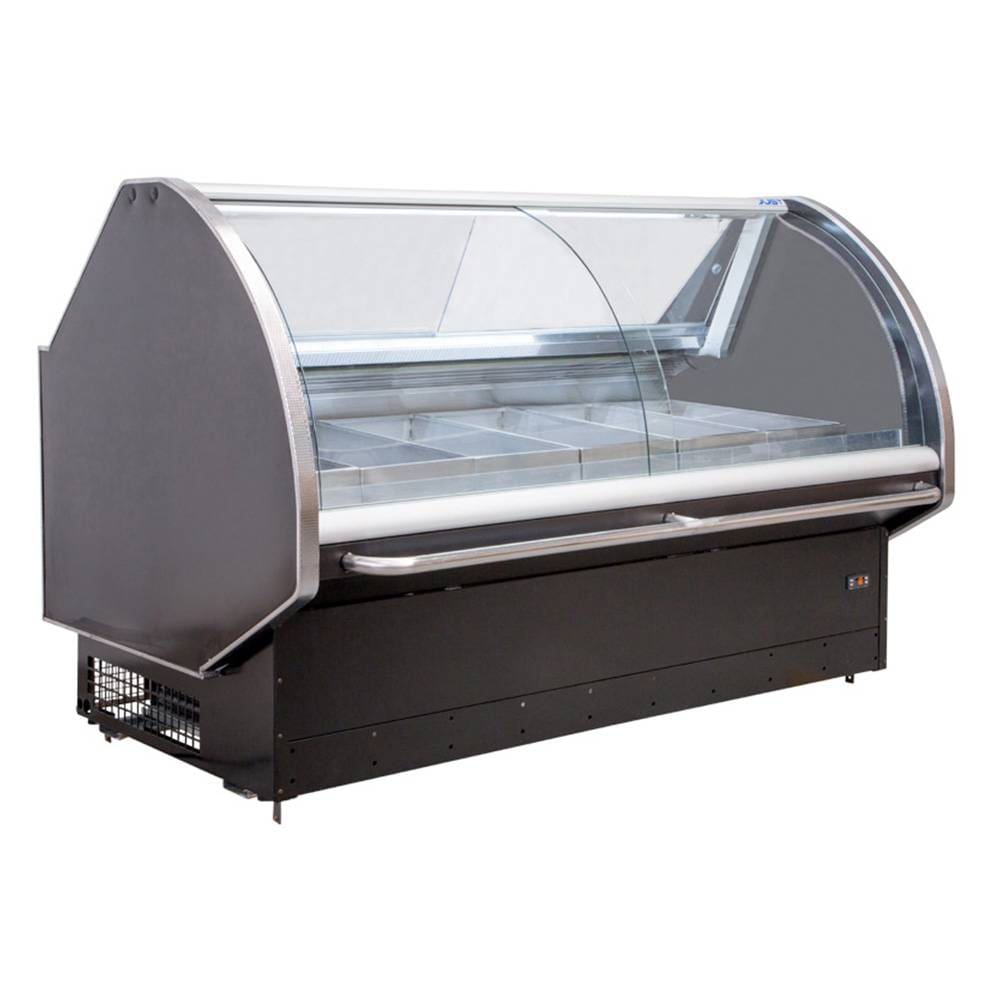

Capture your customers’ attention with a seamless, aerodynamic retail look. The CGDF1830SC curved glass deli freezer combines classic, high-visibility curved aesthetics with heavy-duty commercial chilling power. Engineered with a front sliding glass track for effortless cleanup and a robust forced-air cooling system, this premium 1.9m self-contained display case provides a stunning visual focal point for gourmet food markets, delis, and premium supermarkets
Constructed for high-traffic environments, it features a floor-level removable and color-coded plastic bumper rail to shield the frame from shopping trolley impacts. Thick, high-density injected polyurethane foam insulation minimizes thermal leakage to ease compressor strain. Complete with a smooth, heavy-gauge stainless steel rear work surface for service prep and top rear sliding doors for convenient stock retrieval, this independent freezer delivers plug-and-play merchandising versatility.
| Property | CGDF1830SC |
|---|---|
| Height | 1350mm |
| Width | 1910mm |
| Depth | 1100mm |
| Height (crated) | 1590mm |
| Width (crated) | 2030mm |
| Depth (crated) | 1240mm |
| Weight – Nett | 230kg |
| Weight – Crated | 278kg |
| Display Area | 1.37m² |
| Voltage | 220-240V/50Hz |
| Amperage | 7A |
| Compressor Wattage | 1072 watts |
| Compressor Refrigerant | R404 |
| Wattage of Defrost Element | 1000 watts |
| Temperature Range | -14° to -18°C |
| Defrost Method | Electric |
Q: What is the main structural advantage of curved glass over square glass models?
A: While square glass provides a modern architectural edge, curved glass softens retail footprints, limits harsh reflection angles from overhead supermarket lights, and draws the shopper’s eye down directly into the display envelope, improving rapid impulse sales.
Q: Does the front curved glass panel open out or move for easy maintenance?
A: Yes, the front curved glass is set into a precision front sliding track mechanism. Your floor staff can easily slide the front pane out of the way from the front aisle to clear out debris, clean away customer fingerprints, or sanitize the display basin in seconds.
Q: Can this unit handle high ambient store temperatures?
A: The cabinet features heavy, eco-safe polyurethane foam injected walls that isolate the internal frost boundary from outer store temperatures. It is optimized to easily retain its target sub-zero zone during heavy customer traffic times.
The Just Refrigeration CGDF1830SC curved glass display counter is built to protect the cold chain while presenting high-margin frozen goods in their best light. The elegant, sweeping glass profile softens harsh retail lines, opening up clear lines of sight from standard shopping heights to your ice creams, frozen seafood mixes, or prepared artisan dinners.
Breakthrough technology replaces a conventional thermostat with an advanced electronic energy management system to cool quicker and maintain a more consistent temperature, while saving precious electricity.
By combining EMD control with ECM fans, electronic expansion valves and high-performance coils, we are able to further reduce energy consumption while improving cooling performance.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
