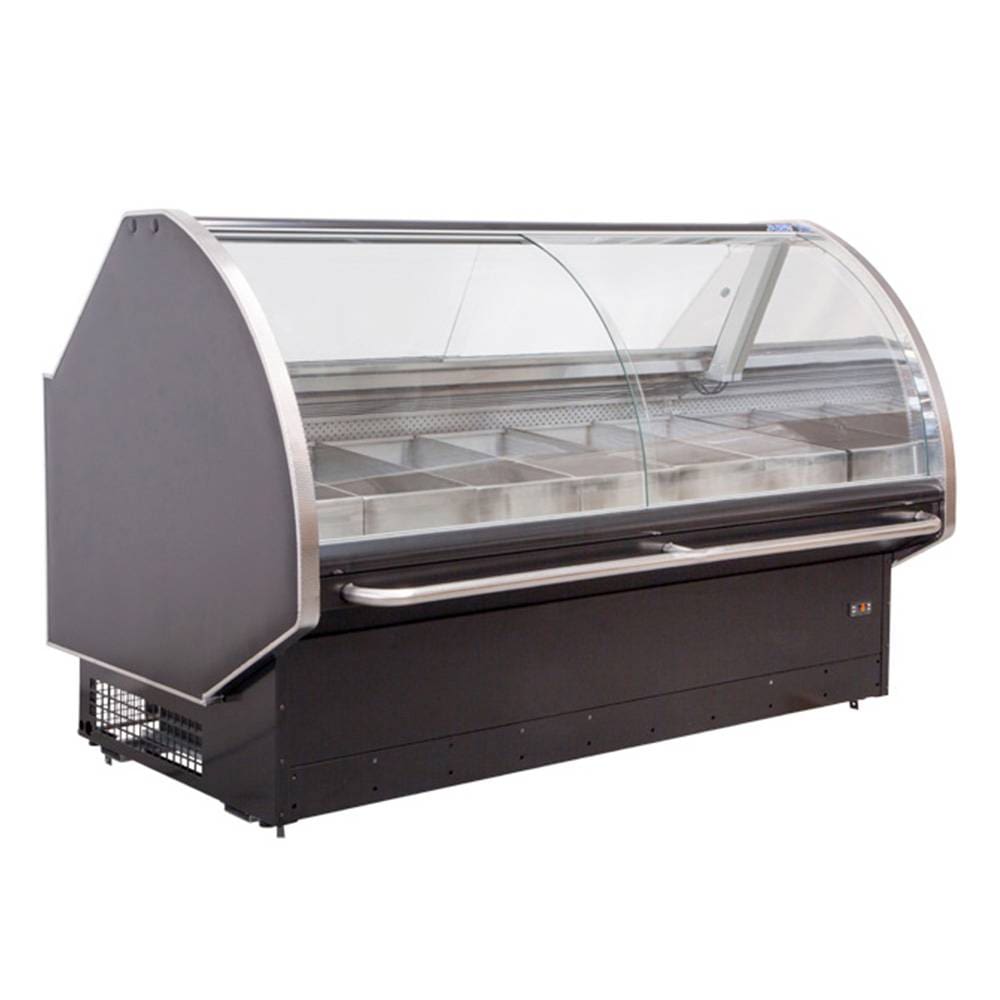

Present your premium meat cuts under flawless lighting while strictly securing your cold chain boundaries. The curved glass meat display case pairs elegant, sweeping front presentation glass with robust commercial cooling capacity. Specifically built for butcheries, supermarkets, and specialty meat markets, this serve-over counter removes harsh overhead reflection angles, drawing your customer’s eyes directly down onto fresh steaks, mince, and cold cuts.
Inside the cabinet, you’ll find a heavy-duty, food-grade stainless steel interior display deck that handles heavy presentation bins and makes sanitization straightforward. The rear includes a deep stainless steel counter worktop for active food prep, weighing, or order packaging, along with rear sliding perspex doors that give your serving staff fast, convenient access to stock.
| CGM1220SC | CGM1830SC | CGM2440SC | |
|---|---|---|---|
| Height | 1350mm | 1350mm | 1350mm |
| Width | 1300mm | 2010mm | 2520mm |
| Depth | 1100mm | 1100mm | 1100mm |
| Height (crated) | 1450mm | 1450mm | 1450mm |
| Width (crated) | 1340mm | 2050mm | 2570mm |
| Depth (crated) | 1160mm | 1160mm | 1160mm |
| Weight – Nett | 158Kgs | 218Kgs | 300Kgs |
| Weight – Crated | 185Kgs | 265Kgs | 345Kgs |
| Display Area | 0.78m² | 1.37m² | 1.728m² |
| Meat Bins | 4 | 6 | 8 |
| Voltage | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz |
| Amperage | 3.8A | 4.6A | 5.8A |
| Compressor Watts | 584watts | 989watts | 1250watts |
| Compressor Refrigerant | R134A | R134A | R134A |
| Cooling Fans | 1 | 2 | 3 |
| Temperature Range | -2° to +2°C | -2° to +2°C | -2° to +2°C |
| Defrost Method | Electric | Electric | Electric |
Q: Why does a fresh meat case need a lower temperature range than a standard deli fridge?
A: Raw fresh meat is highly sensitive to temperature fluctuations and bacterial growth. While standard deli items hold perfectly around 4°C, raw poultry, pork, and beef require a tighter, sub-freezing envelope strictly between 0°C and 2°C to lock in freshness, maximize shelf life, and maintain a bright, healthy color.
Q: Does the front curved glass panel slide open for cleaning?
A: Yes, the front curved safety glass panel is mounted on a heavy-duty front sliding track track. This allows your cleaning staff to smoothly slide the front glass open from the aisle side to easily wipe down internal smudges, scrub corners, and sanitize the storage basin without stretching uncomfortably from the rear.
Q: Can I use this display counter for seafood or marine products as well?
A: While the forced-air cooling system holds the perfect temperature boundaries for meats, fresh fish and seafood ideally require specialized static ice-bed display methods to prevent dehydration. We recommend consulting our team so we can calibrate the internal air velocities if your primary focus is fish or unpackaged seafood lines.
This premium curved glass counter-service unit is built to withstand punishing commercial foot traffic. It features a heavy-duty stainless steel bumper rail extending across the lower front profile, designed to shield the frame from impact by heavy shopping trolleys. The internal cooling layout balances high-performance forced air velocity with delicate humidity levels to protect raw meats against premature surface drying or unappealing browning.
Breakthrough technology replaces a conventional thermostat with an advanced electronic energy management system to cool quicker and maintain a more consistent temperature, while saving precious electricity.
By combining EMD control with ECM fans, electronic expansion valves and high-performance coils, we are able to further reduce energy consumption while improving cooling performance.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
