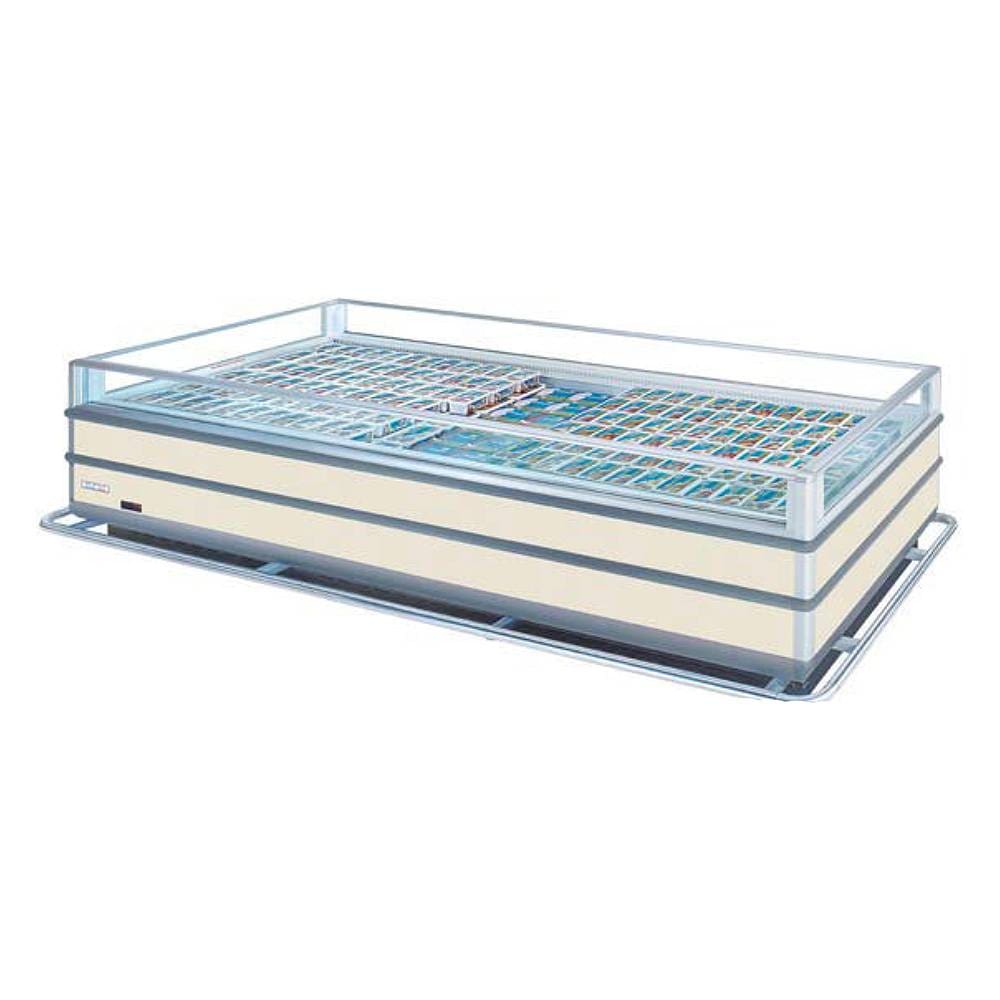

Maximize aisle engagement and open up 360-degree shopping access with this commercial-grade display unit. The wide island display freezer is an extra-wide, dual-sided merchandising fixture engineered to place high-volume bulk items directly in high-traffic customer walkways. Designed with low-friction sliding glass lids and deep-well storage, it delivers an expansive, well-lit presentation for frozen meats, bulk vegetables, prepared ready meals, or chilled deli stock.
The cabinet is built with high-density, CFC-free injected polyurethane foam insulation to keep operational energy consumption low and ensure steady internal holding temperatures. Low-emissivity (low-E) tempered sliding glass lids prevent ambient heat transfer and minimize misting, while heavy-duty perimeter bumper rails protect the exterior from shopping cart impacts. With flexible internal divider baskets and dual-temperature functionality, it easily adapts to seasonal promotions and shifting inventory requirements.
| Units | 8ft | 12ft | |
|---|---|---|---|
| Length | mm | 2440 | 3660 |
| Width | mm | 1540 | 1540 |
| Height | mm | Front Glass: 200 / Total Height: 890 | Front Glass: 200 / Total Height: 890 |
| Thickness of end | mm | 60 | 60 |
| Gross Volume | m³ | 1.28 | 1.92 |
| Total Display area | m² | 2.98 | 4.48 |
| Evaporator fans | nr.x watt | 3 x 10 | 4 x 10 |
| Antimist heater | watt | 87(L) 39(M) | 125(L) 55(M) |
| Defrost Heater | nr.x watt | 1×1000(L) 1×420(M) | 1×1500(L) 1×625(M) |
| Nr. Defrost in 24h | nr.x 24h | 3/24h ~ 45 min def. +12˚C | 3/24h ~ 45 min def. +12˚C |
| LOW TEMP | |||
| Orifice | nr. | TES2 or.03 | TES2 or.04 |
| Refrigeration Capacity (-35˚C) | watt | 1360 | 2040 |
| Rating Power | watt | 2334 | 2998 |
| Daily electrical consumption | KWH/24 | 8.4 | 12.1 |
| MEDIUM TEMP | |||
| Orifice | nr. | TES2 or.01 | TES2 or.01 |
| Refrigeration Capacity (-10˚C) | watt | 750 | 1120 |
| Rating Power | watt | 2300 | 2760 |
| Daily electrical consumption | KWH/24 | 4.6 | 6.4 |
Q: How does the “Wide Island” differ from the “Jumbo Island” cabinet?
A: While both are designed for central supermarket aisles, the Wide Island provides a broader lateral merchandising deck optimized for two-way, simultaneous customer browsing in wider aisle paths, offering greater horizontal surface area for high-turnover promotional products.
Q: Can I switch the Wide Island between freezing and chilling modes?
A: Yes. The unit features a dual-temperature electronic controller, allowing you to easily adjust between sub-zero deep freezing (-18°C to -22°C) for frozen foods and medium chilling (0°C to +4°C) for fresh deli products and beverages.
Q: Does the glass surface stay clear in high-humidity store conditions?
A: Yes. The cabinet utilizes low-emissivity reflective glass combined with low-wattage perimeter frame heating elements to prevent ambient air condensation from fogging the glass, ensuring clear product visibility throughout the trading day.

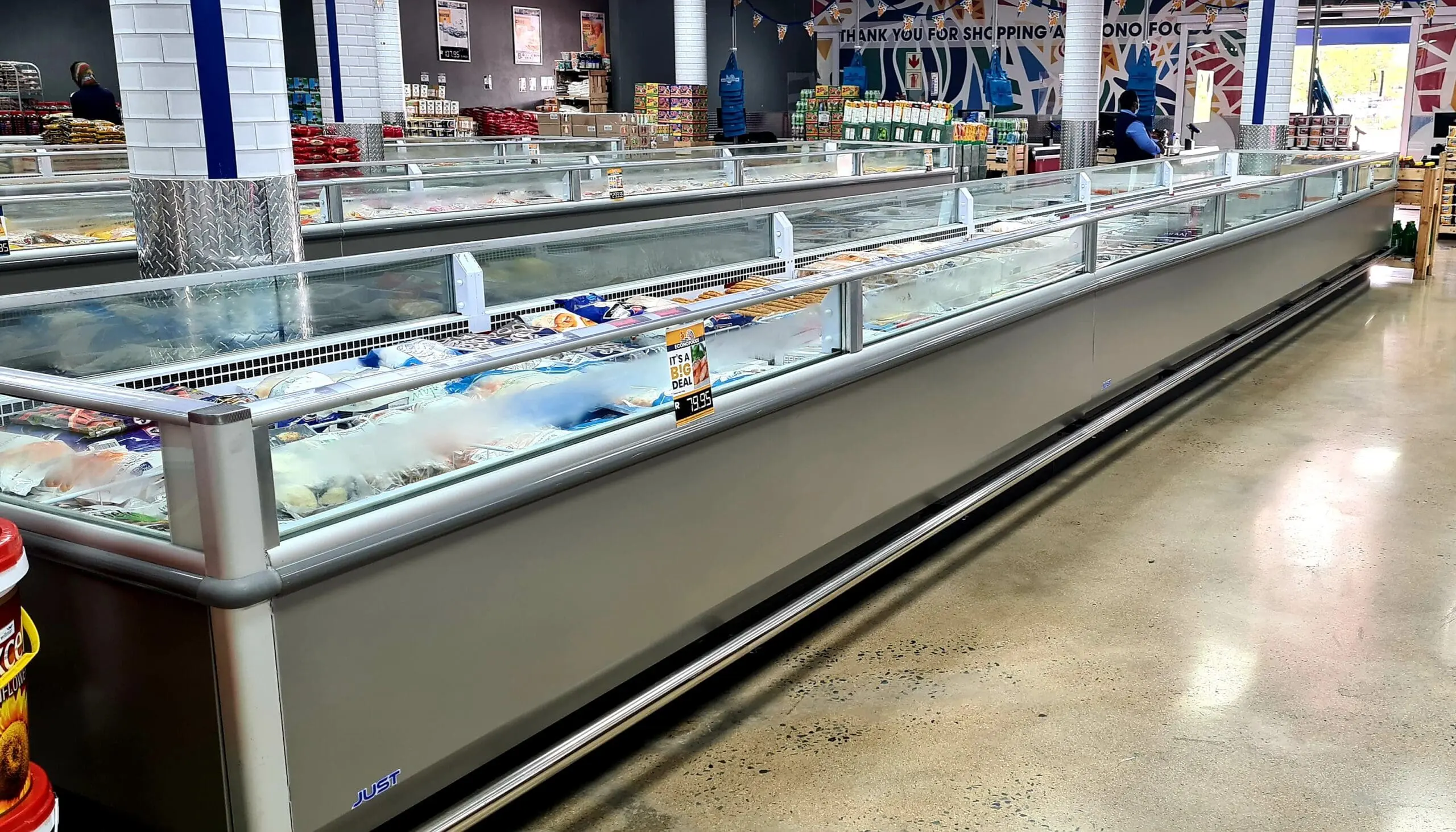

Built to serve as the central anchor of supermarkets, grocery stores, and wholesale hypermarkets, the Wide Island series pairs massive merchandising volume with energy-conscious thermal engineering. Its wide-profile horizontal well gives shoppers an unobstructed view of stacked frozen and chilled product lines from either side of the aisle.
Breakthrough technology replaces a conventional thermostat with an advanced electronic energy management system to cool quicker and maintain a more consistent temperature, while saving precious electricity.
By combining EMD control with ECM fans, electronic expansion valves and high-performance coils, we are able to further reduce energy consumption while improving cooling performance.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
