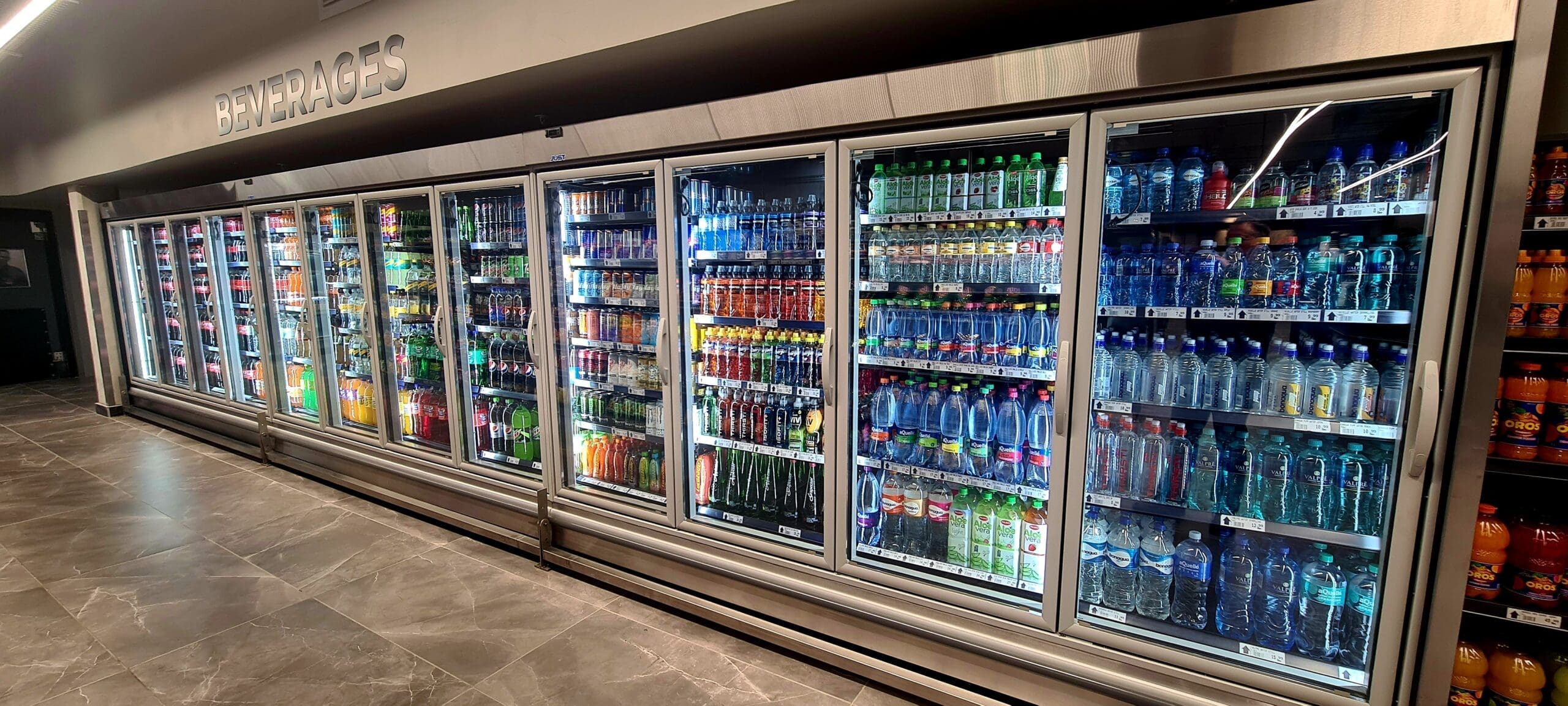

Maximize front-of-house beverage visibility and accelerate impulse sales with this high-capacity vertical merchandiser. The commercial upright glass door fridge is engineered to showcase bottled beverages, dairy products, cold snacks, and pre-packaged meals in prime customer eye-lines. Combining clear double-glazed safety glass, brilliant LED canopy lighting, and rapid forced-air pull-down cooling, this display chiller delivers dependable performance for supermarkets, convenience stores, and busy hospitality outlets.
The cabinet is constructed with high-density polyurethane insulation to minimize thermal loss and reduce compressor run-times. Double-glazed tempered glass doors with magnetic sealing gaskets and self-closing hinges help retain interior cold air, while a factory-fitted digital controller offers simple temperature monitoring. Complete with adjustable heavy-duty wire shelves, clear price ticketing channels, and durable mobility castors, this upright merchandiser is a true plug-and-play revenue generator.
| Units | 3P | 4P | |
|---|---|---|---|
| Length | mm | 2343 | 3124 |
| Width | mm | 940 | 940 |
| Height | mm | Front Glass: 335 / Total Height: 2040 | Front Glass: 335 / Total Height: 2040 |
| Thickness of end | mm | 50 | 50 |
| Gross Volume | m³ | 218 | 291 |
| Total Display area | m² | 2.17 | 2.89 |
| Evaporator fans | nr.x watt | 3×65 | 4×65 |
| Evaporator fans power | watt | 195 | 260 |
| Lighting | nr.x watt | 4×35 | 5×35 |
| Lighting power | watt | 140 | 175 |
| Antimist heater | watt | 755(L) 378(M) | 1000(L) 500(M) |
| Defrost Heater | nr.x watt | 3×950(L) 1×950(M) | 3×1250(L) 1×1250(M) |
| Nr. Defrost in 24h | nr.x 24h | 1/24h ~ 60 min def. +6˚C | 1/24h ~ 60 min def. +6˚C |
| LOW TEMP | |||
| Orifice | nr. | TES2 or.04 | TES2 or.05 |
| Refrigeration Capacity (-35˚C) | watt | 1790 | 2380 |
| Rating Power | watt | 1182 | 1550 |
| Daily electrical consumption | KWH/24 | 26.8 | 35.3 |
| MEDIUM TEMP | |||
| Orifice | nr. | TES2 or.01 | TES2 or.02 |
| Refrigeration Capacity (-10˚C) | watt | 1090 | 1460 |
| Rating Power | watt | 805 | 1050 |
| Daily electrical consumption | KWH/24 | 16.6 | 21.9 |
Q: Does the Timor unit come with an on-board compressor?
A: No, the Timor is a remote display cabinet. The refrigeration engine is located outside of your retail shopping floor (e.g., on a roof or rear exterior wall). This removes noise and heat from your storefront entirely. If you require standalone, plug-in configurations, please see our Self-Contained Display Case range.
Q: Can I change a Medium-Temp Timor into a Low-Temp unit later on?
A: The technical base specs (orifices, elements, and internal elements) are distinctly factory-tuned for low-temp or medium-temp workloads. We recommend declaring your exact use-case profile during the quoting stage so our factory can ship the correct core configuration for your business.
Q: What is the benefit of the Stainless Steel Bumper Rail option?
A: It provides rugged protection against shopping trolleys and pallet jacks hitting the base of the glass frames during restocking, drastically lengthening cabinet lifespan in heavy-traffic environments.
Built for demanding, high-traffic commercial environments, this vertical glass-front display chiller provides consistent temperature management from top to bottom. Its forced-air circulation ensures even cold airflow across every shelf tier, preventing hot spots and keeping drinks ice-cold even during frequent restocking and opening cycles.
Breakthrough technology replaces a conventional thermostat with an advanced electronic energy management system to cool quicker and maintain a more consistent temperature, while saving precious electricity.
By combining EMD control with ECM fans, electronic expansion valves and high-performance coils, we are able to further reduce energy consumption while improving cooling performance.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
