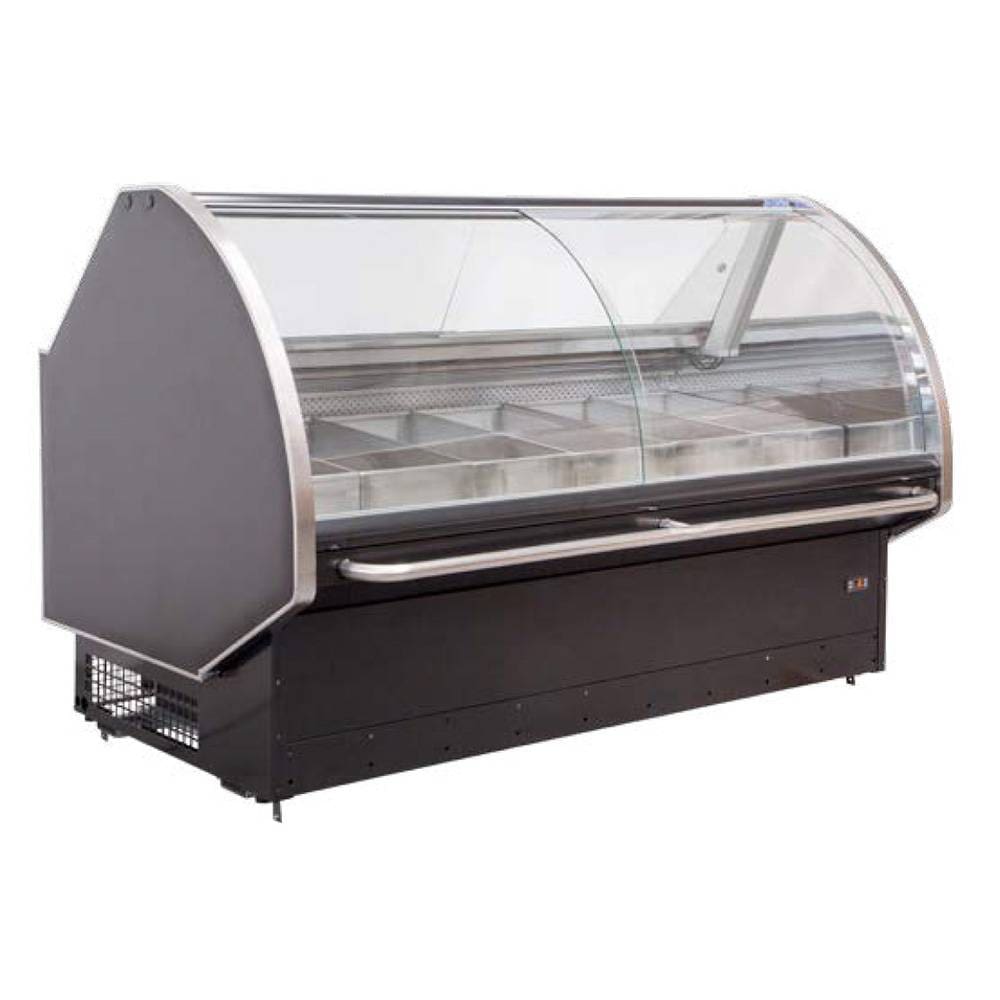

Showcase your fresh bakes, breads, and confectionery in style without unnecessary cooling costs. The curved glass ambient display case is an un-refrigerated counter-service unit engineered specifically for items that thrive at room temperature. Merging a sweeping, aerodynamic curved front pane with an ultra-durable commercial body, this counter allows you to curate stunning, high-visibility food displays that drive impulse bakery and snack sales.
Built to handle punishing, high-traffic environments, it is manufactured with a combination of heavy-gauge 1.2mm metals (including galvanised and Chromadek sheets) finished in a scratch-resistant powder coating. The front viewing glass is SABS-approved, shatterproof safety glass to ensure absolute operator and customer safety. To protect the cabinet from the daily impacts of shopping carts, a rigid stainless steel bumper rail is fitted standard across the front profile.
| DIMENSIONS | UoM | 4FT | 6FT | 8FT | 12FT |
|---|---|---|---|---|---|
| Length | mm | 1300 | 2010 | 2520 | 3750 |
| Height | mm | 1350 | 1350 | 1350 | 1350 |
| Depth | mm | 1100 | 1100 | 1100 | 1100 |
| Thickness of end | mm | 35 max 42 | 35 max 42 | 36 max 42 | 37 max 42 |
| Total display area | m² | 0.78 | 1.37 | 1.728 | 2.138 |
| Lighting | nr x watt | 1 x 36 | 1 x 36 | 2 x 36 | 2 x 36 |
Q: What types of food products should be stored in an ambient display case?
A: Ambient cases are designed for baked goods and room-temperature merchandise that do not require refrigeration or active humidity control. This includes fresh loaves of bread, artisan rolls, muffins, croissants, cookies, donuts, and wrapped dry snacks.
Q: Does this unit have a cooling system or plug into a drain line?
A: No. This is a completely dry, un-refrigerated unit. It does not have a compressor, evaporator, or cooling fan, which means it requires no drainage line, makes absolutely no operational noise, and consumes a fraction of the electricity used by a standard fridge.
Q: What is the benefit of the injected polyurethane foam if it doesn’t cool?
A: Even though the unit is non-refrigerated, the high-density injected polyurethane foam provides massive structural strength, rigidity, and impact resistance. It ensures the heavy-gauge metal panels do not warp or sag under the weight of commercial use, keeping the glass tracks perfectly aligned over years of opening and closing.
The Just Refrigeration ambient curved glass counter is the ultimate addition to bakeries, donut shops, cafes, and front-of-house supermarket deli sections. Because it requires no internal refrigeration mechanisms, it operates with zero compressor noise, zero heat output, and incredibly low energy draw—powering only its high-luminance, energy-efficient internal LED lighting strip.
