Maximise your frozen food visibility while drastically reducing electricity overheads. This commercial flat top sliding glass top chest freezer combines a rugged, heavy-duty frame with crystal-clear sliding display panels. Perfect for fast-paced convenience stores and supermarkets, it offers large holding volumes and deep sub-zero temperature stability to lock in product freshness and attract passing foot traffic.

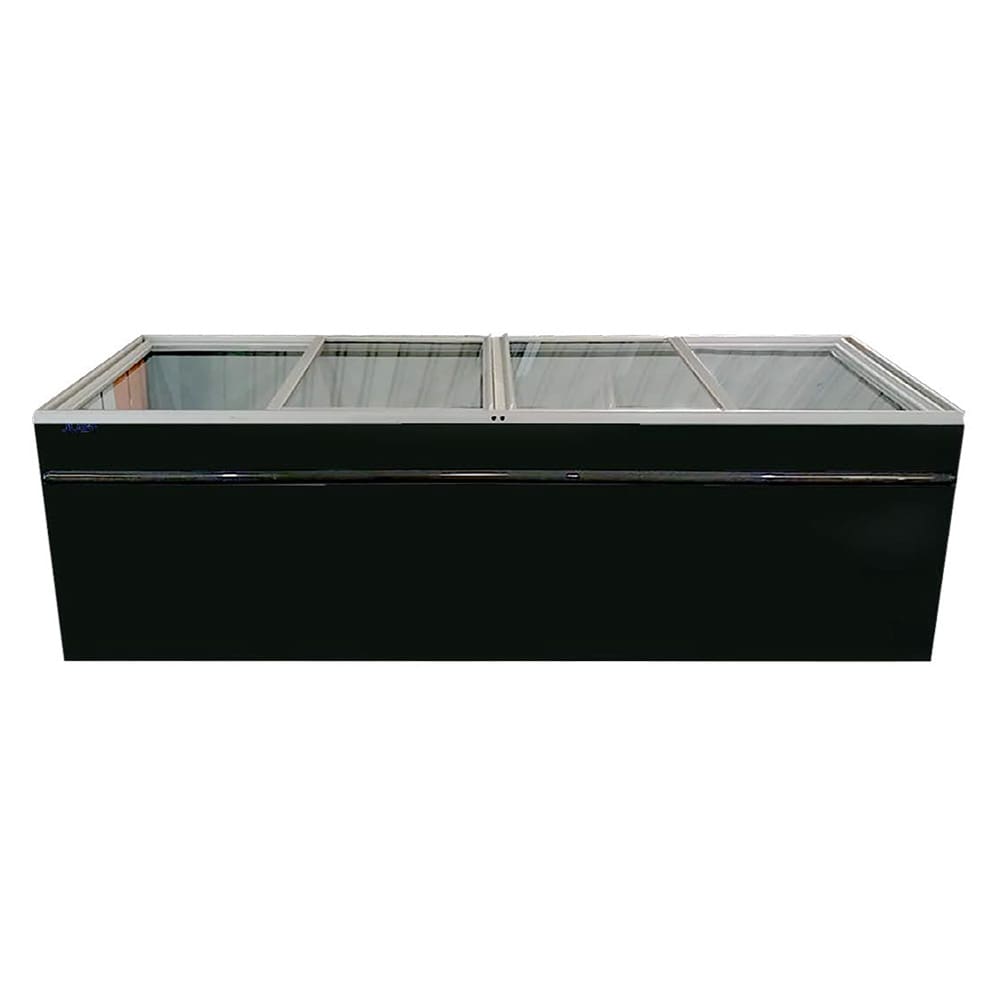

VT250H – VISITOP FREEZER
| DIMENSIONS | UoM | 8FT |
|---|---|---|
| Length | mm | 2505 |
| Width | mm | 960 |
| Height | mm | 725 |
| Weight | kg | 230 |
| FEATURES | SPECIFICATIONS |
|---|---|
| Running Temperature | -15°C/-22°C |
| Ambient Conditions | 28°C – 65% RH |
| Gross cabinet volume | 1109 Litres |
| Refrigerated volume | 985 Litres |
| Insulation | Polyurethane |
| Thermostat | Electronic Controller |
| Frame Antimist Heater | Yes |
| Expansion Device | Capillary Tube |
| Evaporator Fans | Static Skin |
| Voltage | 220-240V AC / 50Hz |
| Refrigerant | R290 |
| Condenser | Fan assist |
| Compressor | LBP Hermetic |
| Feet | 1 Direction Wheel |
| Glass Door Type & Quantity | 4 x Sliding |
| Footprint area | 2.58 m² |
| Glass Display Visual Area | 2.1 m² |
| Nominal Rating Power | 450 Watts / 1.95 A |

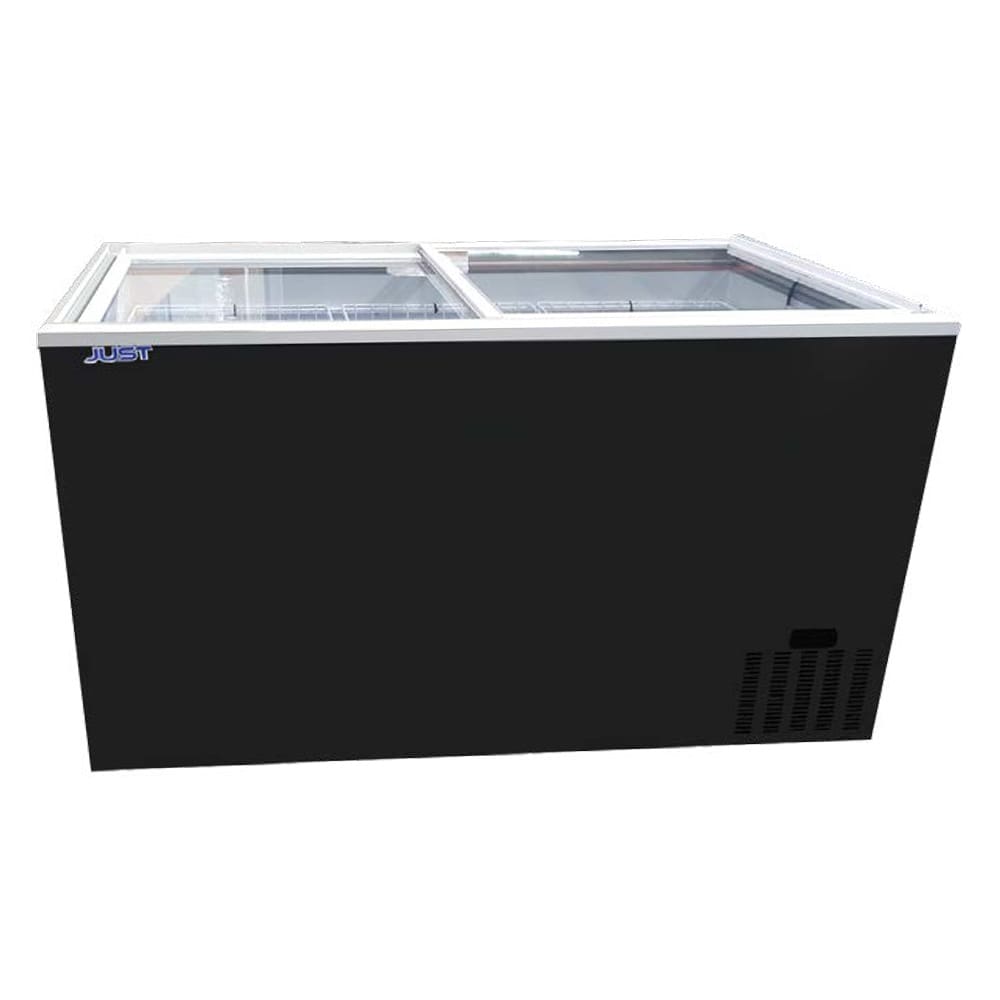

VT525ST – VISITOP FREEZER
| DIMENSIONS | UoM | 4FT |
|---|---|---|
| Length | mm | 1455 |
| Width | mm | 655 |
| Height | mm | 875 |
| Weight | kg | 120 |
| Running Temperature | -18°C/-20°C | |
| Ambient Conditions | 27°C – 65% RH Class 4 | |
| Quantity and Basket Size | 3 off 405 x 470 x 230 | |
| Management Device / Thermostat | Electronic Controller | |
| Defrost Method | Cycled-Natural | |
| Expansion Device | Capillary Tube | |
| Evaporator | Ice Lined | |
| Voltage | 220-240V AC / 50Hz | |
| Refrigerant | R600a | |
| Condenser | Fan Assist | |
| Compressor | LBP Hermetic | |
| Feet | Rollers | |
| Glass Door Type & Quantity | 2 x Sliding | |
| Footprint Area | m² | 0.94 |
| Glass Display Visual Area | m² | 0.7 |
| Nominal Rating Power | 450W / 1.1A |
Q: Does ice build up quickly on the sliding glass lids?
A: No. These commercial freezers feature a factory-fitted frame anti-mist heater. By gently warming the perimeter of the lid track, the freezer prevents frost formation and external condensation, keeping your products perfectly visible.
Q: What is the difference between the VT250H and VT525ST temperature profiles?
A: The VT250H is a deep-freezing powerhouse operating between -15°C and -22°C, ideal for long-term storage and ice cream. The VT525ST operates at a highly stable -18°C to -20°C, perfect for standard commercial frozen foods, packaged meats, and veggies.
Q: Is the freezer easy to move around for store cleaning or restructuring?
A: Yes, the units are fitted with durable, heavy-duty multi-directional rollers or wheels, allowing you to easily reposition the freezer when rearranging your retail layout or cleaning underneath the unit.
Built for tough retail layouts, this high-visibility island glass top chest freezer is optimized to operate smoothly even in high-humidity climates. It features an integrated frame antimist heater to stop external condensation from blocking your customer’s view of high-margin frozen goods. Utilizing eco-friendly refrigerants and static skin evaporators, it ensures whisper-quiet, cost-effective sub-zero storage year-round.
Breakthrough technology replaces a conventional thermostat with an advanced electronic energy management system to cool quicker and maintain a more consistent temperature, while saving precious electricity.
By combining EMD control with ECM fans, electronic expansion valves and high-performance coils, we are able to further reduce energy consumption while improving cooling performance.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
