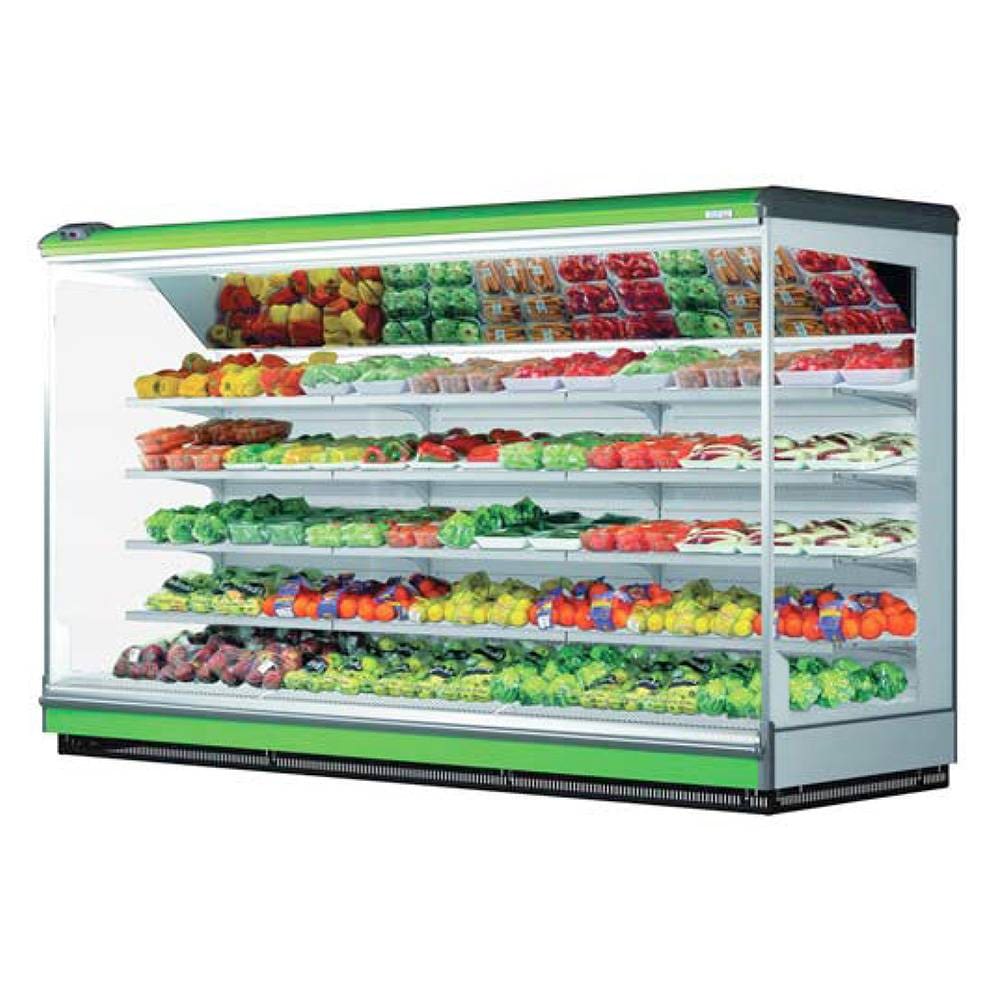

Keep your fresh produce crisp, vibrant, and highly appealing to shoppers. Designed for high-capacity retail environments, this upright fruit and veg fridge features an open high-back design complete with rear mirrors and integrated LED canopy lighting to transform everyday greens into profit-driven impulse buys. Equipped with advanced temperature management, it reliably preserves delicate inventory in demanding climate conditions.
| Specification | Units | 6ft | 8ft | 12ft | HEAD PIECE |
|---|---|---|---|---|---|
| Length | mm | 1875 | 2500 | 3750 | T.R.2025 |
| Height | mm | 2040 | 2040 | 2040 | 2040 |
| Depth | mm | 950 / 1130 | 950 / 1130 | 950 / 1130 | 950 / 1130 |
| Thickness of end | mm | 35 max 50 | 35 max 50 | 35 max 50 | 35 max 50 |
| Gross Volume | m³ | 1.57 / 1.67 | 2.09 / 2.25 | 3.15 / 3.38 | 1.57 / 1.67 |
| Total Display area | m² | 3.24 / 3.58 | 4.33 / 4.78 | 6.49 / 7.16 | 3.24 / 3.58 |
| Evaporator fans | nr.x watt | 2 x 10 | 4 x 10 | 6 x 10 | 2 x 10 |
| Lighting | nr.x watt | 2 x 36 | 4 x 36 | 6 x 36 | 2 x 36 |
| Nr. Defrost in 24h | nr.x 24h | 3/24h ~ 70 min def. +10˚C | 3/24h ~ 70 min def. +10˚C | 3/24h ~ 70 min def. +10˚C | 3/24h ~ 70 min def. +10˚C |
| Refrigeration Capacity (300 front at -5˚C) | watt | 1591 / 1748 | 2218 / 2397 | 3384 / 3673 | 1591 / 1748 |
| Refrigeration Capacity (440 front at -5˚C) | watt | 1432 / 1574 | 1997 / 2158 | 3046 / 3306 | 1432 / 1574 |
| Refrigeration Capacity (540 front at -5˚C) | watt | 1289 / 1417 | 1798 / 1943 | 2742 / 2976 | 1289 / 1417 |
| Rating Power | watt | 1150 | 1380 | 1840 | 460 |
| Daily Electrical Consumption | KWH/24 | 2.6 | 3.9 | 5.3 | 2.6 |
Q: How do the rear mirrors benefit my retail store?
A: The integrated rear mirrors create a visual illusion of double the stock depth. This makes your fruit and vegetable displays look incredibly abundant and lush, which is proven to stimulate impulse buys and increase sales volume.
Q: How often does the automatic defrost cycle run, and will it impact my produce?
A: The system runs 3 pre-programmed defrost cycles per 24 hours (lasting roughly 70 minutes each). The temperature only rises minimally to clear ice from the coils, ensuring your delicate leafy greens and fresh fruits remain perfectly chilled and undamaged.
Q: Are night curtains included with this high-back cabinet?
A: Yes. Every unit is equipped with integrated manual night curtains. Pulling these down after trading hours retains the cold air, slashes electricity consumption, and reduces strain on the compressor overnight.

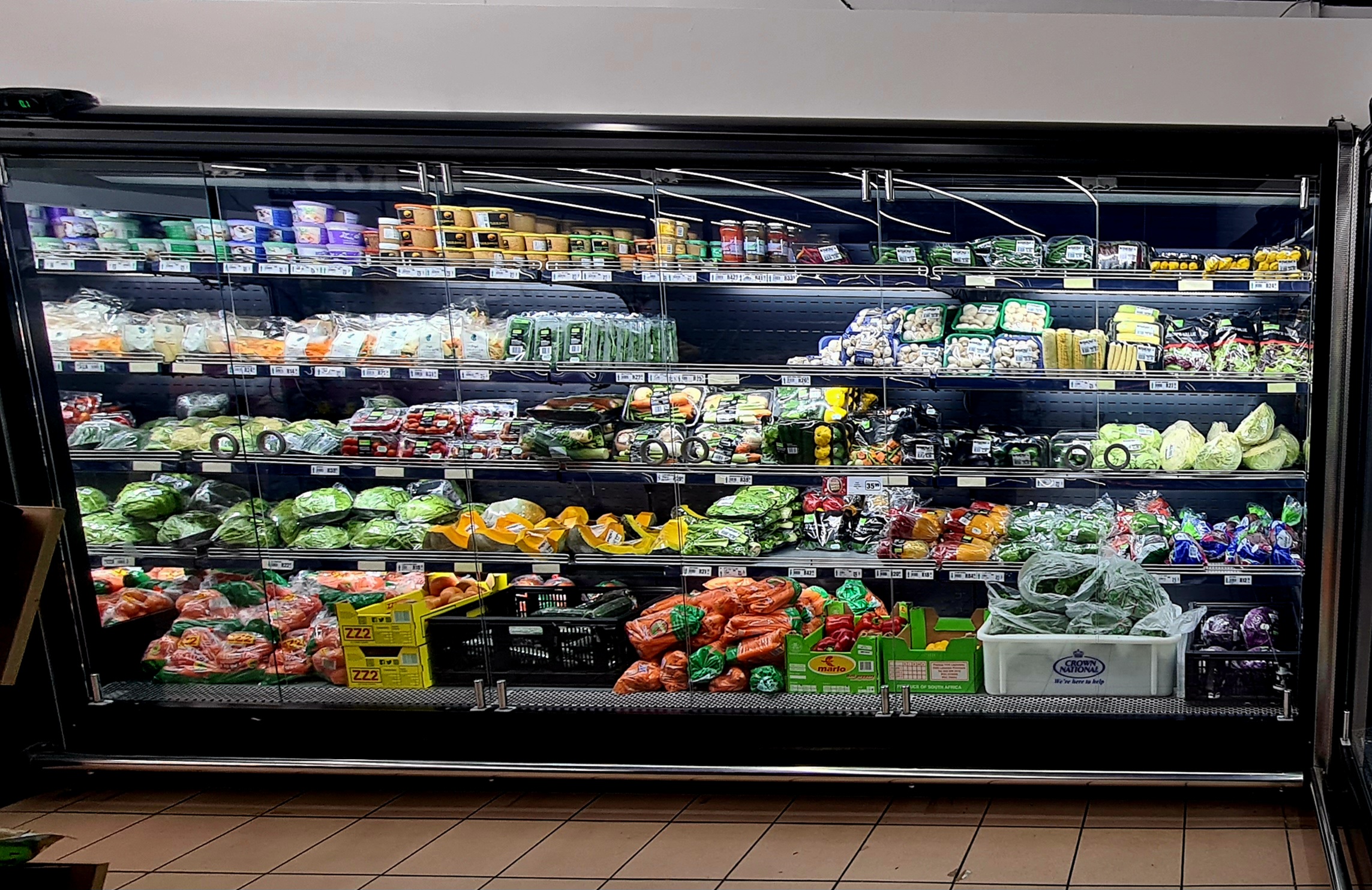

This commercial high-back open cabinet is the perfect retail solution for supermarkets, greengrocers, and fresh food markets. Built to endure demanding retail foot traffic, it is outfitted with a heavy-duty stainless steel bumper rail to protect against impact from shopping trolleys. It utilizes powerful, rear-wall-mounted evaporator fans to guarantee even cold air distribution throughout the display tiers, reducing hot spots and cutting down on food waste.
Breakthrough technology replaces a conventional thermostat with an advanced electronic energy management system to cool quicker and maintain a more consistent temperature, while saving precious electricity.
By combining EMD control with ECM fans, electronic expansion valves and high-performance coils, we are able to further reduce energy consumption while improving cooling performance.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
