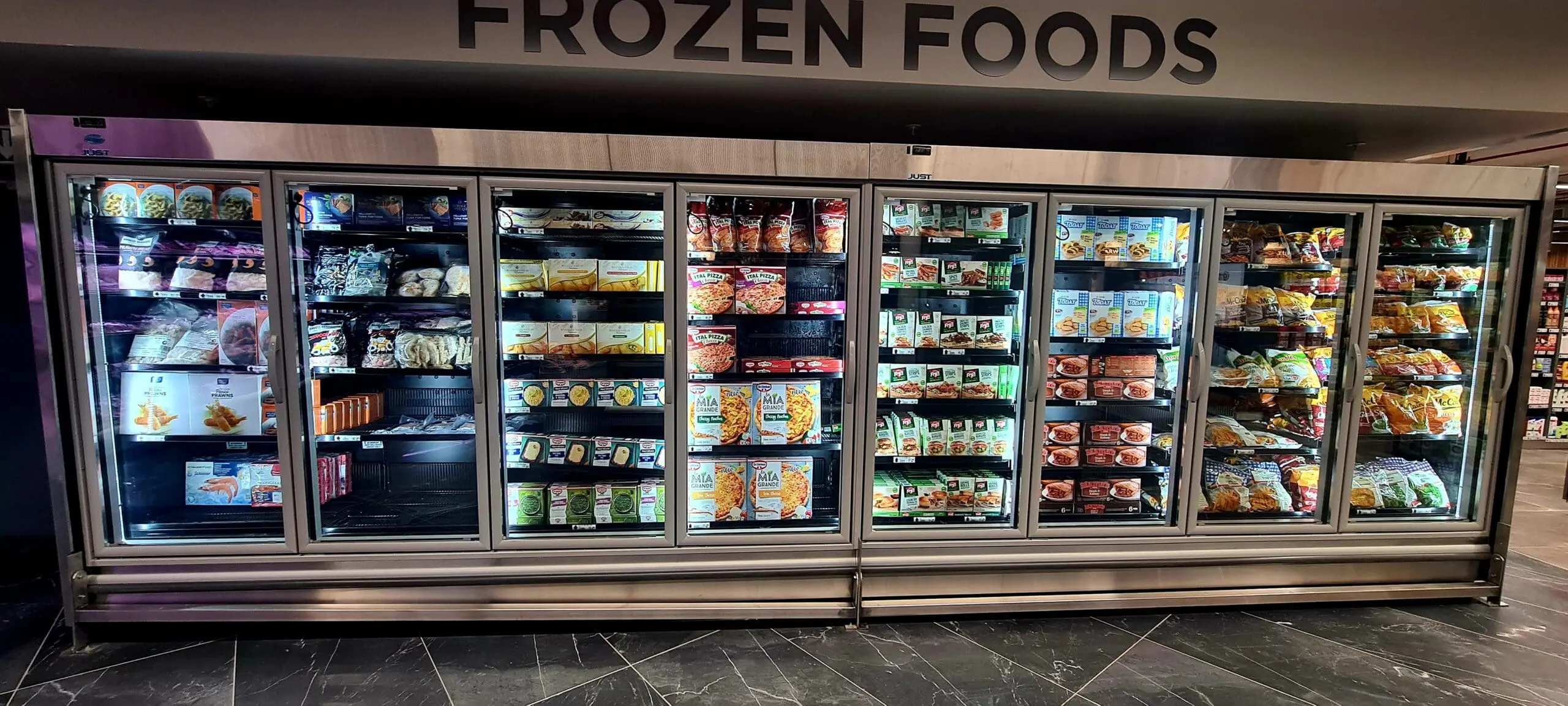

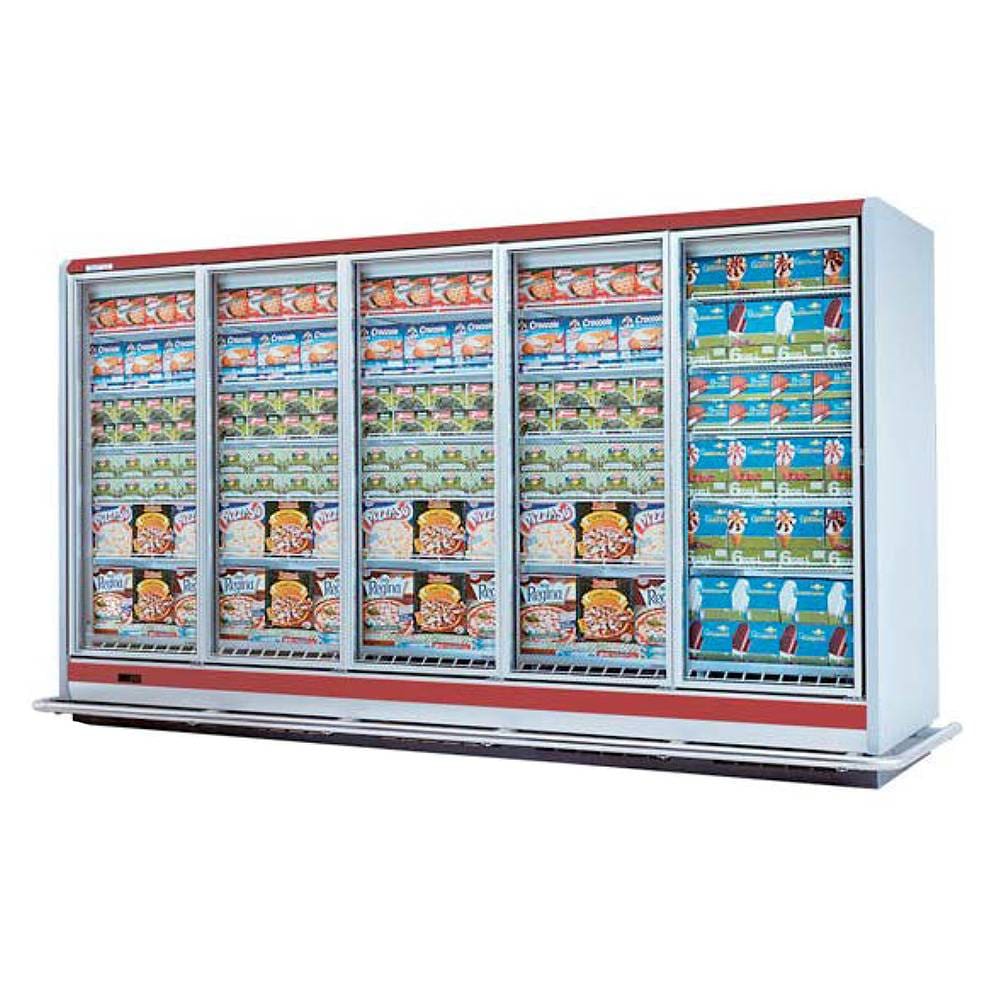

Optimise your floor space and upgrade your supermarket layout. The Timor glass door chiller freezer cabinet is a high-capacity, space-saving remote merchandising solution engineered to showcase both frozen goods and chilled perishables side by side. Combining modern, distortion-free vertical glass doors with high-efficiency remote cooling engines, this premium system pulls heat and operational compressor noise completely away from your retail trading floor.
Because the refrigeration infrastructure operates remotely (e.g., on an exterior wall or roof layout), your customers enjoy a quiet, cool browsing environment while your company benefits from lower indoor air conditioning costs. Built with advanced electronic expansion valves and high-performance airflow systems, the Timor balances rapid temperature recovery with a highly uniform cold profile. It features premium LED vertical pillar lighting, adjustable internal wire racking, and a heavy-gauge stainless steel bumper rail to shrug off impacts from shopping trolleys.
| Units | 3P | 4P | |
|---|---|---|---|
| Length | mm | 2343 | 3124 |
| Width | mm | 940 | 940 |
| Height | mm | Front Glass: 335 / Total Height: 2040 | Front Glass: 335 / Total Height: 2040 |
| Thickness of end | mm | 50 | 50 |
| Gross Volume | m³ | 218 | 291 |
| Total Display area | m² | 2.17 | 2.89 |
| Evaporator fans | nr.x watt | 3×65 | 4×65 |
| Evaporator fans power | watt | 195 | 260 |
| Lighting | nr.x watt | 4×35 | 5×35 |
| Lighting power | watt | 140 | 175 |
| Antimist heater | watt | 755(L) 378(M) | 1000(L) 500(M) |
| Defrost Heater | nr.x watt | 3×950(L) 1×950(M) | 3×1250(L) 1×1250(M) |
| Nr. Defrost in 24h | nr.x 24h | 1/24h ~ 60 min def. +6˚C | 1/24h ~ 60 min def. +6˚C |
| LOW TEMP | |||
| Orifice | nr. | TES2 or.04 | TES2 or.05 |
| Refrigeration Capacity (-35˚C) | watt | 1790 | 2380 |
| Rating Power | watt | 1182 | 1550 |
| Daily electrical consumption | KWH/24 | 26.8 | 35.3 |
| MEDIUM TEMP | |||
| Orifice | nr. | TES2 or.01 | TES2 or.02 |
| Refrigeration Capacity (-10˚C) | watt | 1090 | 1460 |
| Rating Power | watt | 805 | 1050 |
| Daily electrical consumption | KWH/24 | 16.6 | 21.9 |
Q: Does the Timor unit come with a built-in compressor mechanism?
A: No, the Timor is strictly a remote display cabinet. The refrigeration plant is installed outside your shopping floor (such as on a building roof or outside yard). This removes the hot ambient air and fan motor noise from your retail floor completely.
Q: Can I change a Medium-Temp Timor section into a Low-Temp zone by adjusting the thermostat?
A: No. The internal evaporators, capillary configurations, expansion orifices, and defrost heating elements are distinctly tuned and installed at the factory for either low-temp or medium-temp workloads. Please state your desired mix of chiller or freezer door zones during your quoting stage so our assembly team can calibrate the cabinet to your exact inventory profile.
Q: How do the anti-mist glass heaters work on this combo cabinet?
A: The Timor features built-in electrical anti-mist wire heaters embedded along the internal glass door frames (drawing 378W–500W in Medium-Temp and 755W–1000W in Low-Temp). These draw just enough thermal current to stop dew points from forming on the glass pane, ensuring your products remain completely clear and visually striking even on humid days.
The Timor multi-door combo series is the preferred wall fixture for supermarkets, hypermarkets, and heavy-footprint convenience stores across South Africa. Designed with maximum thermal insulation and anti-mist glass door treatments, it entirely eliminates external glass sweating even in high-traffic retail environments.
Breakthrough technology replaces a conventional thermostat with an advanced electronic energy management system to cool quicker and maintain a more consistent temperature, while saving precious electricity.
By combining EMD control with ECM fans, electronic expansion valves and high-performance coils, we are able to further reduce energy consumption while improving cooling performance.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
Our innovative swift swop™ technology enables easy replacement of the refrigeration deck without unpacking the contents of the fridge and without any skilled labour.
